Transformer

• Capacity
• As per model

• Coil Material
• Other , High-grade copper

• Coil Number
• Other, Single or Multiple

• Coil Structure
• Other, Toroidal, Wound, or Bar-type

• Cooling Type
• Air-cooled

• Dimension (L*W*H)
• Varies (typically 150 x 120 x 130 mm for standard models)

• Efficiency
• High

• Frequency (MHz)
• 50-60

• High Voltage
• Up to 11 kV

• Load Loss
• Low

• Low Voltage
• 1A or 5A output

• Material
• Copper wire, insulated casing

• Operating Temperature
• -10C to +55C

• Output
• 5A/1A (standard secondary current)

• Phase
• Other, Single or Three Phase

• Power Scope
• Up to 11 kV

• Product Type

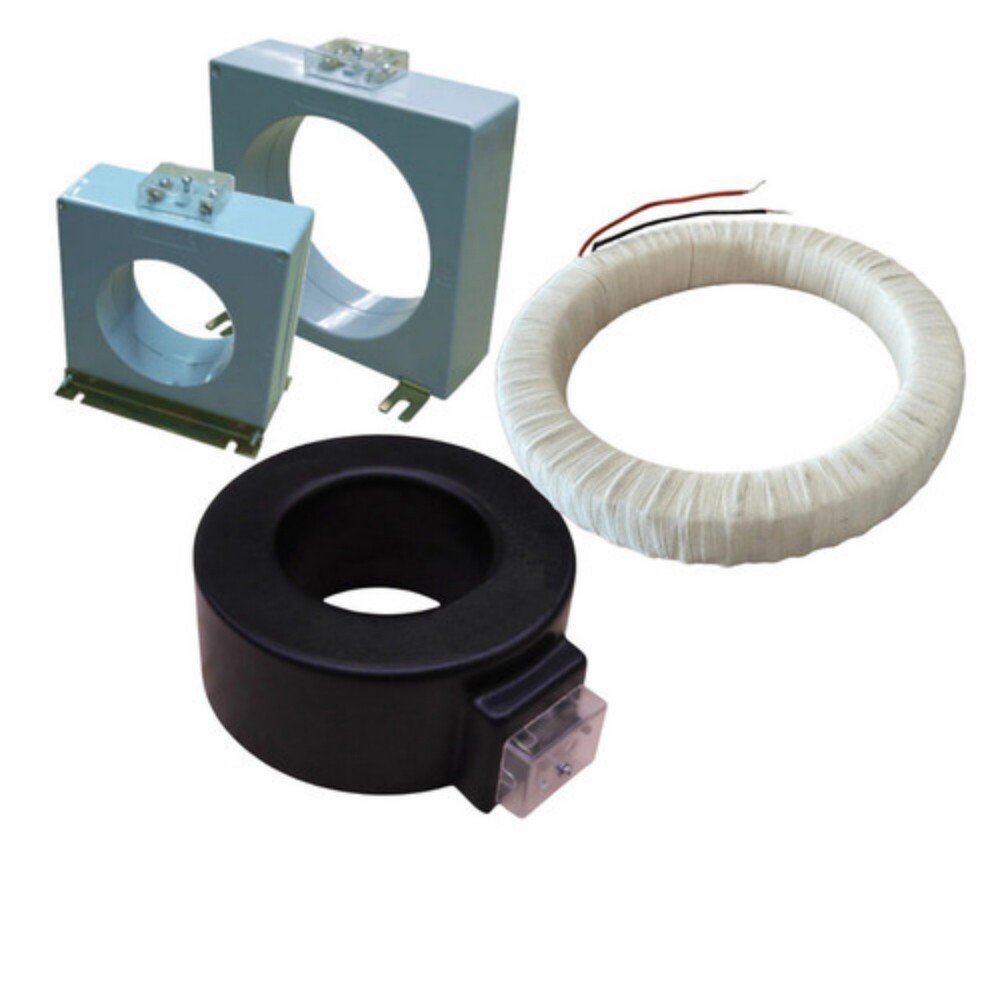

• Current Transformer

• Rated Voltage
• Up to 11 kV

• Standard
• IS 2705 / IEC 60044-1

• Usage
• Electrical measurement and protection

• Weight
• 2-8 kg (varies with rating)

• Capacity
• Up to 50W (model specific)

• Coil Material
• Other , Enameled Copper Wire

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Toroidal and E-I Core Available

• Cooling Type
• Air Cooled

• Dimension (L*W*H)
• Varies by model, typical example: 27mm x 22mm x 24mm

• Efficiency
• High (typically above 85%)

• Frequency (MHz)
• 20-200 kHz

• High Voltage
• Up to 250V AC (input)

• Load Loss
• Low, less than 1W at rated load

• Low Voltage
• 3.3V-24V DC (output)

• Material
• Ferrite core with copper winding

• Operating Temperature
• -25C to +85C

• Output
• Varying DC output based on design

• Phase
• Single Phase

• Power Scope
• Low to Medium Power

• Product Type

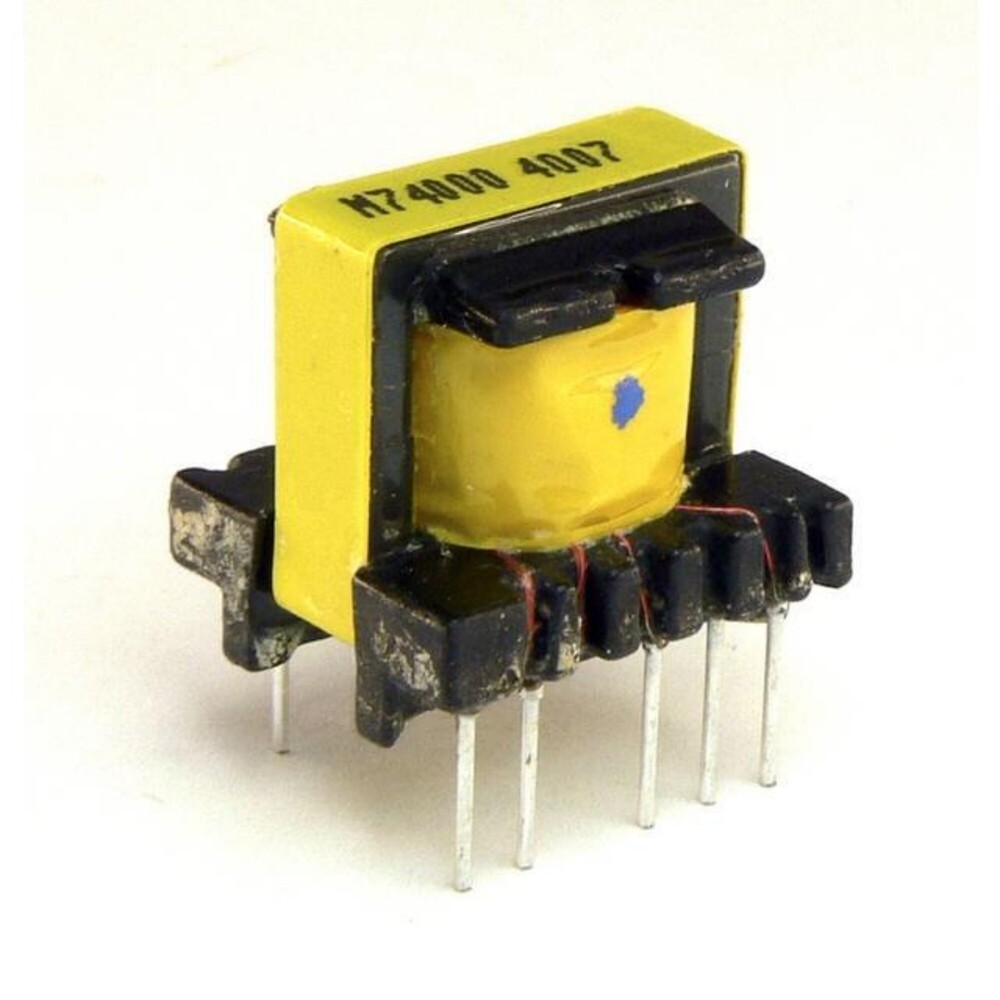

• Other, SMPS Transformer

• Rated Voltage
• AC 220V Input, outputs from 3.3V to 24V DC

• Standard
• RoHS Compliant, CE Certified

• Usage
• Power supply for electronic devices, SMPS circuits, and adapters

• Voltage Booster Type
• Other, Flyback / Forward

• Weight
• 20-150 grams (model dependent)

• Capacity
• 500 VA to 3000 VA

• Coil Material
• Other , Copper

• Coil Number
• Double Winding

• Coil Structure
• Toroidal

• Cooling Type
• Air Cooled

• Dimension (L*W*H)
• Customized as per rating (typical size 200mm x 150mm x 160mm)

• Efficiency
• Greater than 95%

• Frequency (MHz)
• 50-60 Hz

• High Voltage
• 415V AC

• Load Loss
• Low, design optimized

• Low Voltage
• 12V/24V/110V/220V AC

• Material
• Copper winding with laminated iron core

• Operating Temperature
• -10C to +50C

• Output
• 12V/24V/110V/220V AC (based on model)

• Phase
• Single Phase

• Power Scope
• Upto 3 KVA

• Product Type

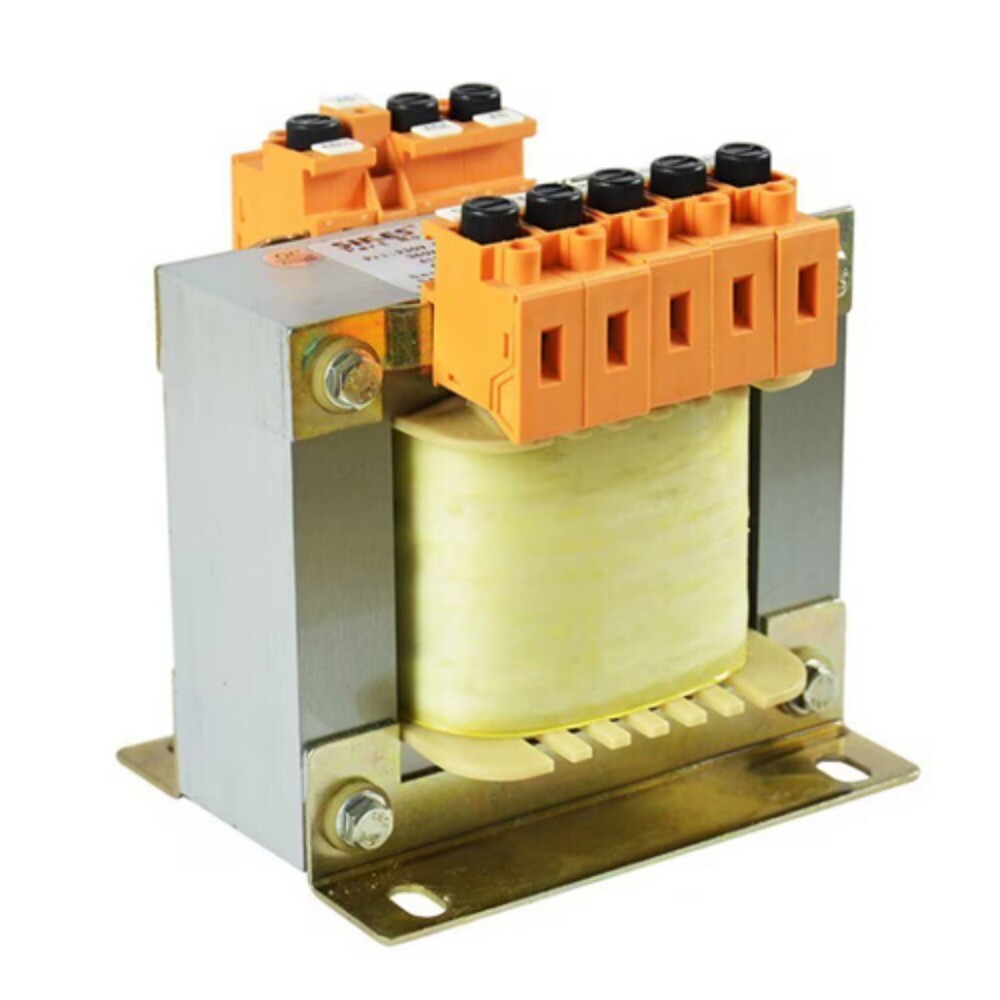

• Other, Control Transformer

• Rated Voltage
• 415V / 230V AC

• Standard
• IS 12021, IEC 61558

• Usage
• Control panel and industrial machinery application

• Weight
• 5-18 kg (varies with model)

• Capacity
• Up to 100 kVA

• Coil Material
• Other , High Conductivity Copper

• Coil Number
• Other, Two (Primary & Secondary)

• Coil Structure
• Other, Toroidal/Layer Wound

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 620 mm x 410 mm x 650 mm (indicative)

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• 11 kV

• Load Loss
• Low, as per IS 1180 standards

• Low Voltage
• 230 V

• Material
• High-Quality Silicon Steel Core, Copper Winding

• Operating Temperature
• -25C to +50C

• Output
• 230V/415V AC (customizable)

• Phase
• Single Phase

• Power Scope
• Up to 100 kVA

• Product Type
• Other, Oil Cooled Distribution Transformer

• Rated Voltage
• 11 kV/230 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Industrial Power Distribution, Voltage Regulation, Isolation Applications

• Voltage Booster Type
• Other, Step-Down Transformer

• Weight
• Approx. 55 kg (varies with rating)

• Capacity
• Up to 2500 kVA

• Coil Material
• Other , Electrolytic Copper

• Coil Number
• Other, Multiple windings per phase

• Coil Structure
• Other, Wound Core

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Custom (e.g. 1800mm x 1200mm x 1600mm typical)

• Efficiency
• Above 98%

• Frequency (MHz)
• 50 Hz

• High Voltage
• Up to 33 kV

• Load Loss
• Low, as per IS standards

• Low Voltage
• 415 V or as required

• Material
• High-Grade Silicon Steel, Copper

• Operating Temperature
• -25C to 85C

• Output
• Customizable as per requirement

• Phase
• Three Phase

• Power Scope
• Up to 2500 kVA

• Product Type
• Other, 4R Core Transformer

• Rated Voltage
• 11 kV / 22 kV / 33 kV

• Standard
• IS 2026, IEC 60076

• Usage
• Industrial and Power Distribution

• Voltage Booster Type
• Other, Tap Changer (Optional)

• Weight
• Varies as per rating (e.g. 1-2 tons typical)
